Product Usage：

This product is suitable for power transmission in the power lines ratedat 1kV and below. Suitable for laying in hotels, railway stations, chemicalindustry, oil platforms, mines, power plants, subways, high-rise buildings andother fire-retardant performance demanding places.

Implementation standards :

The implementation of GB / T12706.1 and GB / T 19666, the flameretardant properties in line with GB / T 18380 requirements, halogen-freelow-smoke properties to meet GB / T 17650.2 and GB / T 17651.2 standards.

Model name andpurpose:

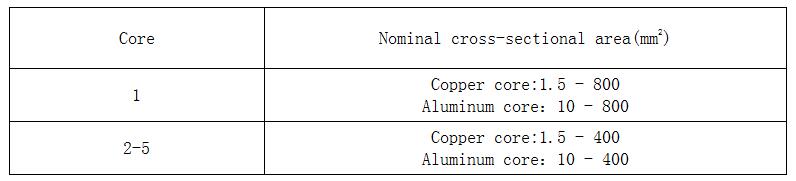

Productspecifications:

Use features:

1、Maximum rated temperature

Long-term maximum allowable operatingconductor temperature: 90 °C,Maximum operating temperature under short-timeoverload: 130°C,Maximum operating temperature under short circuit (shortcircuit duration 5 s): 250 °C

2、Requirements:

2.1 Cable laying shall not be restricted by drop height;the ambient temperature for laying shall not be lower than 0 °C, and if theambient temperature is lower than 0 °C, the cable shall be pre-heated.

2.2 Minimum bendradius of cable during installation:
